Derby Thin Wall Shoe

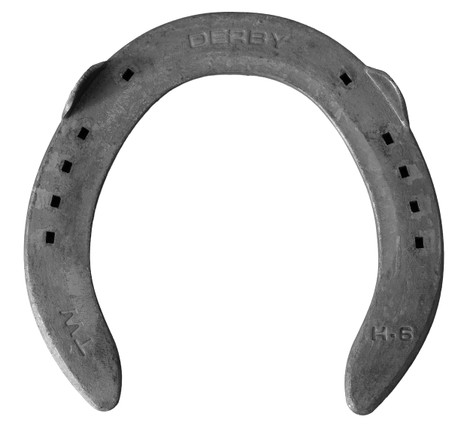

Derby Thin Wall Hind Side Clip Steel Horseshoe

The Derby Thin Wall Horseshoe is a versatile, easy-working shoe designed specifically for horses with thin hoof walls. Manufactured from low carbon steel and drop-forged, the Derby Thin Wall shoe offers consistent quality, strength and reliable fit.

The Derby Thin Wall features a concave profile for traction and built-in sole relief with boxed heels to reduce pressure and support thin-walled feet. A 10-hole thin-wall nail pattern provides farriers with greater flexibility and accurate nail placement, while the side clip offers additional security where required.

With a true section and minimal variance between sizes, the 9mm section thickness delivers improved wear without excessive weight.

Key Features & Benefits

• Drop-forged low carbon steel
• Designed for thin hoof walls
• Concave profile for traction
• Side clip for secure fit
• 10-hole thin-wall nail pattern for flexible nailing
• Built-in sole relief and boxed heels
• 9mm section for increased wear
• True section with minimal size variance

Specifications

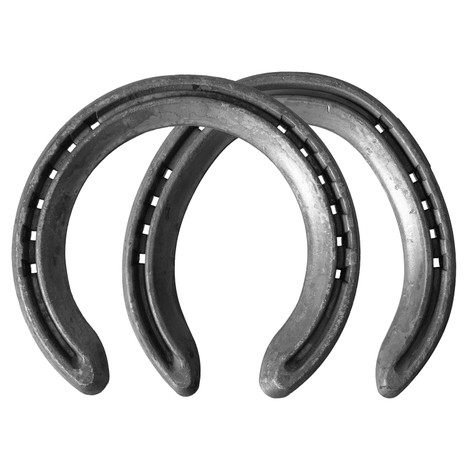

• Symmetrical hinds available in toe or side clip

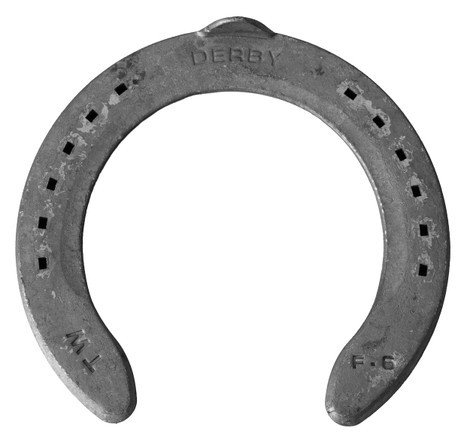

• Front shoe available in toe clip
• Sizes: 4–8
• Punched for E Slim nails
• Sizes 4–5: E3 Slim
• Size 6: E3 or E4 Slim
• Sizes 7–8: E4 Slim

Well suited to Thoroughbreds, Quarter Horses, Polo Horses and other breeds requiring a finer nail pattern and additional wear in a thin-wall steel horseshoe.
